Rainwater collection and re-utilization is an important thing for many countries,3 billion people in the world will suffer from water shortage estimated that by 2025,involving more than 40 countries and regions.As one foremost matter that we find a solution can collect rainwater,then use it as fire fighting water storage through flexible water storage tank bladders,whatever in city or suburbs or remote rural areas without roads.

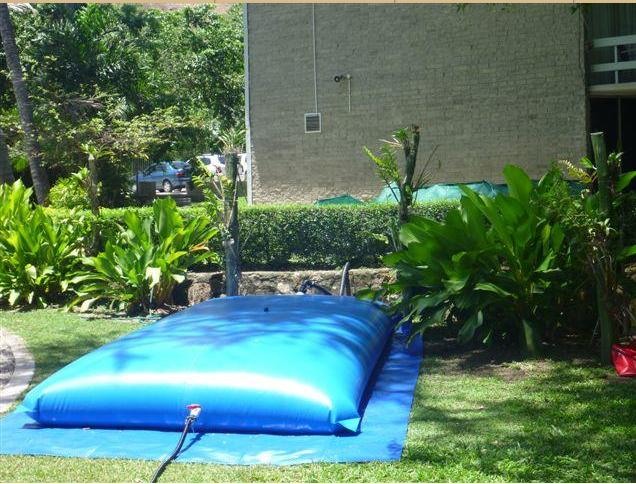

Product name:flexible PVC water bladder fire fighting water storage container tank
Model No.:KSD-007
Material: high resistance 750 g/m2 cloth
Coating: double-sided PVC
Temperature resistance: -30°C to + 70°C
Dimensions: standard and custom made under your needs
Assembly: high-frequency welding
| Capacity | Tank Layflat Size | Tank Approx.Size Filled | Groundsheet Size |
| 1,000litres | 2.60 x 1.50m | 2.10 x 1.00 x 0.50m | 3.10 x 2.00m |
| 2,000litres | 2.60 x 2.30m | 2.00 x 1.70 x 0.60m | 3.10 x 2.80m |
| 3,000litres | 3.10 x 2.60m | 2.50 x 2.00 x 0.60m | 3.60 x 3.10m |
| 5,000litres | 4.50 x 2.60m | 3.80 x 1.90 x 0.70m | 5.00 x 3.10m |
| 10,000litres | 5.20 x 3.40m | 4.20 x 2.40 x 1.00m | 5.70 x 3.90m |
| 15,000litres | 5.20 x 4.50m | 4.10 x 3.40 x 1.10m | 5.70 x 5.00m |
| 20,000litres | 5.40 x 5.20m | 4.20 x 4.00 x 1.20m | 5.90 x 5.70m |
| 30,000litres | 7.20 x 5.20m | 5.90 x 3.90 x 1.30m | 7.70 x 5.70m |
| 50,000litres | 8.30 x 6.50m | 6.80 x 5.00 x 1.50m | 8.80 x 7.00m |
*Ø50mm,Ø76mm and Ø100mm inlet with cap for optional
*Ø50mm,Ø76mm and Ø100mm outlet ball-valve for optional
*1 welded vent to screw-in with gas release valve
*4 reinforced corners
*1 repair kit
*Ground mat for optional
1.Fire fighting water storage
2.Rainwater Collection
3.Residential Water Storage
4.Water Storage for Mining or Industrial Sites
5.Emergency Water Storage for Hospitals, Facilities, and Businesses
6.Construction Site Water Storage (drinking water or process water)
Quote?You can send inquiry sheet or call our team as +86-29-8551-8382 to get more information about fire water tank.
