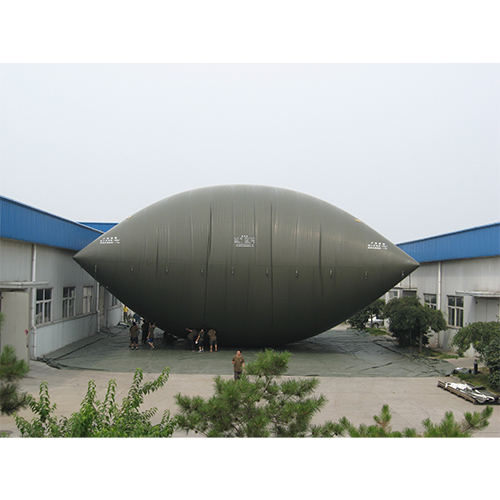

Pillow marine fuel bladder tanks are collapsible when it's filled, flexible fuel storage bladders that provide temporary or long term storage for many kinds of industrial liquids,such as industrial chemicals,diesel,gasoline, lubricating oil, aviation kerosene,etc.
Item name:foldable pillow marine diesel fuel tanks fuel pillow tanks fuel safe bladder
Model No.:KSD-009
Volume:1.00m3-800.00m3
Fitting on tank:oil inlet/outlet quick coupling 1pc,air relief 1pc,handles around sides
Diameter of quick coupling:1.0inch,1.50inch,2.0inch,3.0inch,4.0inch and 6.0inch
Optional items:ground sheet,curve valve,packing cloth
| No. | Capacity | Layflat size of tank(m) | ||
| Liter | M3 | U.S.Gal. | ||
| 1 | 2000 | 2 | 528 | 2.80x2.20 |
| 2 | 3000 | 3 | 792 | 3.20x2.50 |
| 3 | 5000 | 5 | 1319 | 3.80x3.20 |
| 4 | 10000 | 10 | 2639 | 4.40x4.40 |
| 5 | 15,000 | 15 | 3958 | 5.40x4.40 |
| 6 | 20,000 | 20 | 5277 | 6.50x4.40 |
| 7 | 25,000 | 25 | 6596 | 7.00x4.70 |
| 8 | 30,000 | 30 | 7916 | 7.00x5.70 |
| 9 | 40,000 | 40 | 10554 | 7.00x7.00 |
| 10 | 45,000 | 45 | 11873 | 8.50x6.80 |
| 11 | 50,000 | 50 | 13193 | 8.50x7.00 |
| 12 | 76,000 | 76 | 20053 | 11.60x7.00 |
| 13 | 100,000 | 100 | 26385 | 11.60x9.50 |
| 14 | 200,000 | 200 | 52770 | 16.60x9.50 |
| 15 | 400,000 | 400 | 105541 | 17.20x15.70 |
China high quality flexible pillow jet fuel transformer oil bladder tank has many features,such as light in weight, rust resistance,small volume and folded when empty,assemble and transport easily, lay or remove, strong adaptability,good mechanical property, superior sealing, non-vulnerable after repeated folding, etc. Its foldable weight just is 10% of other steel material tank.
Oil field, construction zones,power supply bureau,transformer factory,military,etc.
1.Store and supply many kinds of liquid fuel
2.Expand and use it anywhere and anytime
3.Big volume after filled fuel but light in weight when it is unfilled
4.Operation & carriage easily
5.Made by healthy polyester material with polyurethane
Temperature (° C): -46~+85
FAQ
Q1.What's material of China high quality flexible pillow jet fuel transformer oil bladder tanks?
A:oil bladder tanks is specially designed for temporary storage fuel, oil, water, chemical and other liquids.The standard type is made from highly tensile polyester.Frame work material is terylene fabric coated with special polyurethane on both sides.
Q2.What's thickness of material?
A:1.35mm
Q3.How to inspect quality of oil bladder tanks?
A:We will do inflatable testing and soap-foam testing before shipment.
Q4.What is the MOQ?
A:Our MOQ is 10pcs,but we can accept 1-2pcs as trial order.
Q5.Can you supply fast delivery?
A:yes,we can send it within 10 days after your payment.
