Fuel bladder containment description

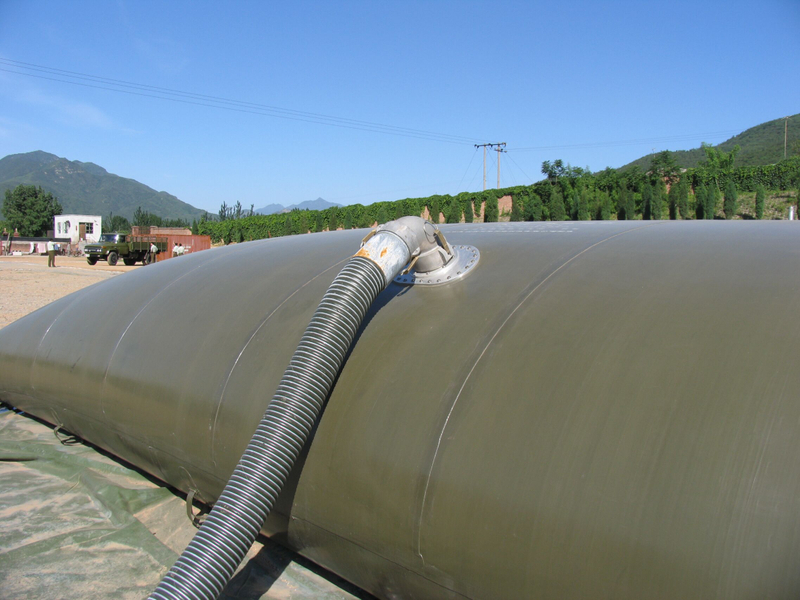

RAINBOW portable pillow fuel tanks is manufactured with highly tensile polyester,it is used widely in construction site,storage fuel as energy to support power to make project finished.Another usage is spare fuel bladder to store extra fuel on boat meet your needs when the boat on sea for a long journey.
Bladder tank aircraft specification
| Capacity | Net Weight | Filled height | Lay-flat size （Length x Width） |
| M3 | Imperial Gal. | Lbs. | Feet | Feet |
|
| 2 | 440 | 55 | 1.6 | 9.0x7.0 |
|
| 3 | 660 | 77 | 1.8 | 10.5x8.2 |
|
| 5 | 1100 | 99 | 2 | 12.5x10.5 |
|
| 10 | 2200 | 154 | 2.6 | 14.4x14.4 |
|
| 15 | 3300 | 198 | 3.3 | 17.7x14.4 |
|
| 20 | 4400 | 243 | 3.6 | 21.3x14.4 |
|
| 25 | 5500 | 276 | 3.6 | 23.0x15.4 |
|
| 50 | 11000 | 485 | 3.6 | 27.8x23.0 |
|
| 76 | 16718 | 728 | 4 | 38.0x23.0 |
|
| 100 | 22000 | 860 | 4 | 36.0x31.2 |
|
| 200 | 44000 | 1388 | 5.2 | 54.5x31.2 |
|
Diesel gas tank advantages
•Rapidly assemble
•Foldable and moveable easily
•No external contamination
•Highly resistant to climatic conditions -46 to +85℃
•Anti-UV resistance
•Folded volume = 1% of storage volume
Need construction site fuel tanks for your project?Call us at +86-29-8836-9398 or send inquiry to our team.
