Large Drinking Water Storage Containers Potable Drinking Water Storage Tanks Made In China

We always supply large potable drinking water storage bladder tank for 16 years,it is a
new kind of vessel and suitable for site and large field project where is far away from water source,you can expand collapsible water tank and assembly with water pipe with water source to get water,tank can be folded up and put away until the next usage.
  • KSD-001
  • Keystar

Large drinking water storage containers description

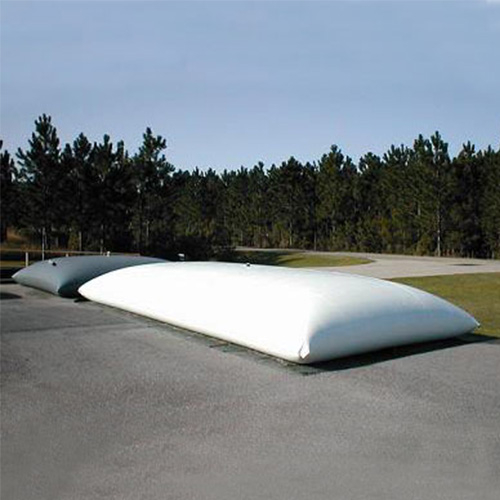

Drinking water storage bladder

Folding drinking water tank potable water storage bladder is made with food grade material-thermoplastic polyurethane.People use it store drinking water,especially for the people who are far away fresh water source.Store fresh potable water safely near the point of use with these potable water bladder.FDA has approved this materials for potable water storage.

Drinking water containers specification

Code Capacity Dimensions Net Weight Foldable Volume
1 200L/53 gal. 55"x35" 4kgs/8.82 lb. 0.01m3
2 500L/132 gal. 81"x43" 6kgs/13.23 lb. 0.02m3
3 1000L/264 gal. 98"x59" 9kgs/19.84 lb. 0.04m3
4 1500L/396 gal. 122"x63" 11kgs/24.25 lb. 0.05m3
5 2000L/528 gal. 125"x74" 14kgs/30.86 lb. 0.06m3
6 3000L/793 gal. 144"x85" 16kgs/35.27 lb. 0.08m3
7 4000L/1057 gal. 154"x94" 20kgs/44.09 lb. 0.09m3
8 5000L/1321 gal. 169"x102" 24kgs/52.91 lb. 0.10m3
9 6000L/1585 gal. 181"x102" 27kgs/59.52 lb. 0.11m3
10 7000L/1849 gal. 193"x110" 32kgs/70.55 lb. 0.12m3
11 8000L/2113 gal. 209"x114" 34kgs/74.96 lb. 0.13m3
12 9000L/2378 gal. 222"x116" 35kgs/77.16 lb. 0.14m3
13 10000L/2642 gal. 226"x120" 37kgs/81.57 lb. 0.15m3
14 12000L/3170 gal. 205"x154" 48kgs/105.82 lb. 0.19m3
15 15000L/3963 gal. 205"x177" 52kgs/114.64 lb. 0.22m3
16 20000L/5283 gal. 213"x205" 61kgs/134.48 lb. 0.26m3
17 30000L/7925 gal. 283"x205" 81kgs/178.57 lb. 0.35m3
18 40000L/10567 gal. 327"x256" 107kgs/235.89 lb. 0.46m3

Potable drinking water storage tanks details

Item name:large drinking water storage containers potable drinking water storage tanks

Model No.:KSD-001

Material:made by food grade material

Color:blue,black,dark green,etc.

Fitting on tank:inlet fitting 1pc,outlet valve 1pc,air vent 1pc

Optional:ground mat,cover

Capacity:200liter(53gal.) to 200,000liter(52770gal.)

Storage tanks for potable water features

1. Location is anywhere and set up and use it anytime
2. Big volume and weight in light
3. Easy assembly & carriage
4. Healthy and safe food grade material

Tank for drinking water storage temperature

Temperature(° C): -46 ~ +85

Drinking water containers technological process

*made by base fabric high tenacity polyester

*made by high-frequency welding or heat sealing

Potable drinking water storage tanks use scope

*store drinking water for human beings

*store milk
*store juice

*store other food liquid

Why choose us?

*Bladder tank made by advanced equipment.

*Competitive price with fast delivery time.

*Rich experience in manufacturing bladder tank since 2006.

*Rich exporting experience for 16 years.

*Golden supplier in from 2009-2022
