KSD-007
keystar
Flexible tanks are a solution for the permanent or temporary storage of liquid. The flexible tanks can be found Fleto store liquid fertilizer in barge or ship holds to distribute to farmers.or put on ground to dispatch to fertilize,or storage liquid fertilizer with container and transport one place to another place.

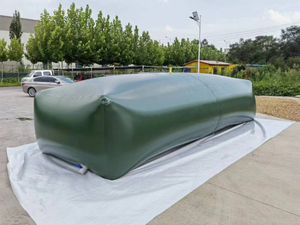

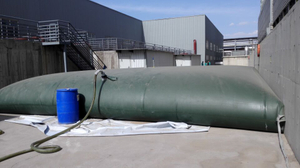

Installation of a flexible tanks is simple and fast, it requires a relatively large, open and flat surface,such as above-ground,under-ground,lawn or sand.Fill liquid fertilizer through inlet fitting with pump,the flexible tanks form a large and plump pillow.Holding liquid fertilizer for temporary storage.
| Capacity | Tank Layflat Size | Tank Approx.Size Filled | Ground sheet Size |
| 1,000L/264 Gal. | 2.60 x 1.50m | 2.10 x 1.00 x 0.50m | 3.10 x 2.00m |
| 2,000L/528 Gal. | 2.60 x 2.30m | 2.00 x 1.70 x 0.60m | 3.10 x 2.80m |
| 3,000lL/793 Gal. | 3.10 x 2.60m | 2.50 x 2.00 x 0.60m | 3.60 x 3.10m |
| 5,000L/1321 Gal. | 4.50 x 2.60m | 3.80 x 1.90 x 0.70m | 5.00 x 3.10m |
| 10,000 L/2642 Gal. | 5.20 x 3.40m | 4.20 x 2.40 x 1.00m | 5.70 x 3.90m |
| 15,000 L/3963 Gal. | 5.20 x 4.50m | 4.10 x 3.40 x 1.10m | 5.70 x 5.00m |
| 20,000 L/5283 Gal. | 5.40 x 5.20m | 4.20 x 4.00 x 1.20m | 5.90 x 5.70m |
| 30,000 L/7925 Gal. | 7.20 x 5.20m | 5.90 x 3.90 x 1.30m | 7.70 x 5.70m |
| 50,000 L/13209 Gal. | 8.30 x 6.50m | 6.80 x 5.00 x 1.50m | 8.80 x 7.00m |
1.Temporary storage of mild chemicals.
2.Ideal for use as transfer and holding tanks.
3.Easily stored and transported when empty.
4.It will be a closed tank.
5.Collapsible and movable when it’s empty.
6.It will be flat, folded and rolled up When a flexible potable water tank arrives to your location.
Make outlet valve is OFF and discharge liquid fertilizer into another container from filled pillow flexible tanks.
Flexible tanks are a solution for the permanent or temporary storage of liquid. The flexible tanks can be found Fleto store liquid fertilizer in barge or ship holds to distribute to farmers.or put on ground to dispatch to fertilize,or storage liquid fertilizer with container and transport one place to another place.
Installation of a flexible tanks is simple and fast, it requires a relatively large, open and flat surface,such as above-ground,under-ground,lawn or sand.Fill liquid fertilizer through inlet fitting with pump,the flexible tanks form a large and plump pillow.Holding liquid fertilizer for temporary storage.
| Capacity | Tank Layflat Size | Tank Approx.Size Filled | Ground sheet Size |
| 1,000L/264 Gal. | 2.60 x 1.50m | 2.10 x 1.00 x 0.50m | 3.10 x 2.00m |
| 2,000L/528 Gal. | 2.60 x 2.30m | 2.00 x 1.70 x 0.60m | 3.10 x 2.80m |
| 3,000lL/793 Gal. | 3.10 x 2.60m | 2.50 x 2.00 x 0.60m | 3.60 x 3.10m |
| 5,000L/1321 Gal. | 4.50 x 2.60m | 3.80 x 1.90 x 0.70m | 5.00 x 3.10m |
| 10,000 L/2642 Gal. | 5.20 x 3.40m | 4.20 x 2.40 x 1.00m | 5.70 x 3.90m |
| 15,000 L/3963 Gal. | 5.20 x 4.50m | 4.10 x 3.40 x 1.10m | 5.70 x 5.00m |
| 20,000 L/5283 Gal. | 5.40 x 5.20m | 4.20 x 4.00 x 1.20m | 5.90 x 5.70m |
| 30,000 L/7925 Gal. | 7.20 x 5.20m | 5.90 x 3.90 x 1.30m | 7.70 x 5.70m |
| 50,000 L/13209 Gal. | 8.30 x 6.50m | 6.80 x 5.00 x 1.50m | 8.80 x 7.00m |
1.Temporary storage of mild chemicals.
2.Ideal for use as transfer and holding tanks.
3.Easily stored and transported when empty.
4.It will be a closed tank.
5.Collapsible and movable when it’s empty.
6.It will be flat, folded and rolled up When a flexible potable water tank arrives to your location.
Make outlet valve is OFF and discharge liquid fertilizer into another container from filled pillow flexible tanks.
