| Availability: | |
|---|---|

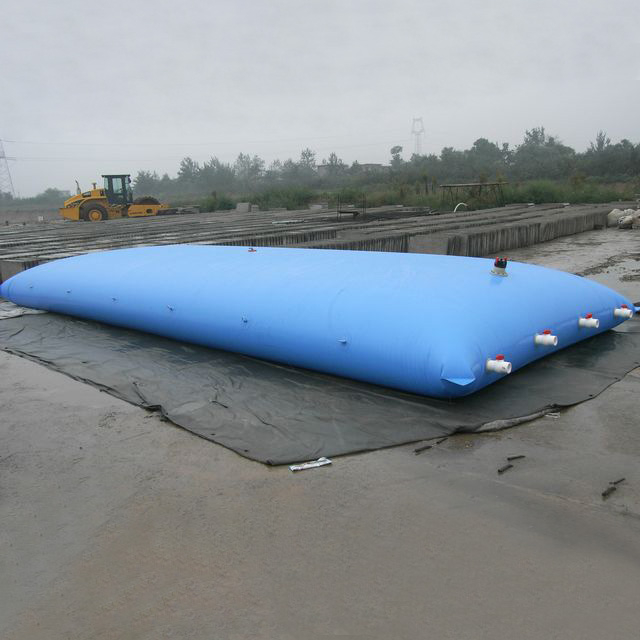

Getting the availability of a ready water is very important when fire happened whatever in forest and fields,but fire truck can’t reach without road or no sources of water in rural or remote areas.Having one or some folding water storage bladder tanks means having a ready water in fire-prone areas.Fill water fully advance as water storage for fire protection which can protect your property once fire happened.
*Material: high resistance PVC tarpaulin
*Coating: double-sided PVC
*Temperature resistance: -30°C to + 70°C
*Dimensions: 20000liter,213"x205"
*Assembly: high-frequency welding or hot air welding
| Code | Capacity | Dimensions | Net Weight | Foldable Volume |
| 1 | 200L/53 gal. | 55"x35" | 4kgs/8.82 lb. | 0.01m3 |
| 2 | 500L/132 gal. | 81"x43" | 6kgs/13.23 lb. | 0.02m3 |
| 3 | 1000L/264 gal. | 98"x59" | 9kgs/19.84 lb. | 0.04m3 |
| 4 | 1500L/396 gal. | 122"x63" | 11kgs/24.25 lb. | 0.05m3 |
| 5 | 2000L/528 gal. | 125"x74" | 14kgs/30.86 lb. | 0.06m3 |
| 6 | 3000L/793 gal. | 144"x85" | 16kgs/35.27 lb. | 0.08m3 |
| 7 | 4000L/1057 gal. | 154"x94" | 20kgs/44.09 lb. | 0.09m3 |
| 8 | 5000L/1321 gal. | 169"x102" | 24kgs/52.91 lb. | 0.10m3 |
| 9 | 6000L/1585 gal. | 181"x102" | 27kgs/59.52 lb. | 0.11m3 |
| 10 | 7000L/1849 gal. | 193"x110" | 32kgs/70.55 lb. | 0.12m3 |
| 11 | 8000L/2113 gal. | 209"x114" | 34kgs/74.96 lb. | 0.13m3 |
| 12 | 9000L/2378 gal. | 222"x116" | 35kgs/77.16 lb. | 0.14m3 |
| 13 | 10000L/2642 gal. | 226"x120" | 37kgs/81.57 lb. | 0.15m3 |
| 14 | 12000L/3170 gal. | 205"x154" | 48kgs/105.82 lb. | 0.19m3 |
| 15 | 15000L/3963 gal. | 205"x177" | 52kgs/114.64 lb. | 0.22m3 |
| 16 | 20000L/5283 gal. | 213"x205" | 61kgs/134.48 lb. | 0.26m3 |
| 17 | 30000L/7925 gal. | 283"x205" | 81kgs/178.57 lb. | 0.35m3 |
| 18 | 40000L/10567 gal. | 327"x256" | 107kgs/235.89 lb. | 0.46m3 |
1.Grey water
2.Slurry collection
3.Chemical effluents
4.Agricultural effluents
5.Wine making effluents
6.Liquid fertilizer storage
7.Ammonia solution storage
8.Solution of caustic soda storage
9.Drinking water storage for livestock
Need a folding PVC fabric fire protection water storage bladder? Call at +86-29-8551-8382 to find out more about our flexible water storage solutions!
Getting the availability of a ready water is very important when fire happened whatever in forest and fields,but fire truck can’t reach without road or no sources of water in rural or remote areas.Having one or some folding water storage bladder tanks means having a ready water in fire-prone areas.Fill water fully advance as water storage for fire protection which can protect your property once fire happened.
*Material: high resistance PVC tarpaulin
*Coating: double-sided PVC
*Temperature resistance: -30°C to + 70°C
*Dimensions: 20000liter,213"x205"
*Assembly: high-frequency welding or hot air welding
| Code | Capacity | Dimensions | Net Weight | Foldable Volume |
| 1 | 200L/53 gal. | 55"x35" | 4kgs/8.82 lb. | 0.01m3 |
| 2 | 500L/132 gal. | 81"x43" | 6kgs/13.23 lb. | 0.02m3 |
| 3 | 1000L/264 gal. | 98"x59" | 9kgs/19.84 lb. | 0.04m3 |
| 4 | 1500L/396 gal. | 122"x63" | 11kgs/24.25 lb. | 0.05m3 |
| 5 | 2000L/528 gal. | 125"x74" | 14kgs/30.86 lb. | 0.06m3 |
| 6 | 3000L/793 gal. | 144"x85" | 16kgs/35.27 lb. | 0.08m3 |
| 7 | 4000L/1057 gal. | 154"x94" | 20kgs/44.09 lb. | 0.09m3 |
| 8 | 5000L/1321 gal. | 169"x102" | 24kgs/52.91 lb. | 0.10m3 |
| 9 | 6000L/1585 gal. | 181"x102" | 27kgs/59.52 lb. | 0.11m3 |
| 10 | 7000L/1849 gal. | 193"x110" | 32kgs/70.55 lb. | 0.12m3 |
| 11 | 8000L/2113 gal. | 209"x114" | 34kgs/74.96 lb. | 0.13m3 |
| 12 | 9000L/2378 gal. | 222"x116" | 35kgs/77.16 lb. | 0.14m3 |
| 13 | 10000L/2642 gal. | 226"x120" | 37kgs/81.57 lb. | 0.15m3 |
| 14 | 12000L/3170 gal. | 205"x154" | 48kgs/105.82 lb. | 0.19m3 |
| 15 | 15000L/3963 gal. | 205"x177" | 52kgs/114.64 lb. | 0.22m3 |
| 16 | 20000L/5283 gal. | 213"x205" | 61kgs/134.48 lb. | 0.26m3 |
| 17 | 30000L/7925 gal. | 283"x205" | 81kgs/178.57 lb. | 0.35m3 |
| 18 | 40000L/10567 gal. | 327"x256" | 107kgs/235.89 lb. | 0.46m3 |
1.Grey water
2.Slurry collection
3.Chemical effluents
4.Agricultural effluents
5.Wine making effluents
6.Liquid fertilizer storage
7.Ammonia solution storage
8.Solution of caustic soda storage
9.Drinking water storage for livestock
Need a folding PVC fabric fire protection water storage bladder? Call at +86-29-8551-8382 to find out more about our flexible water storage solutions!
