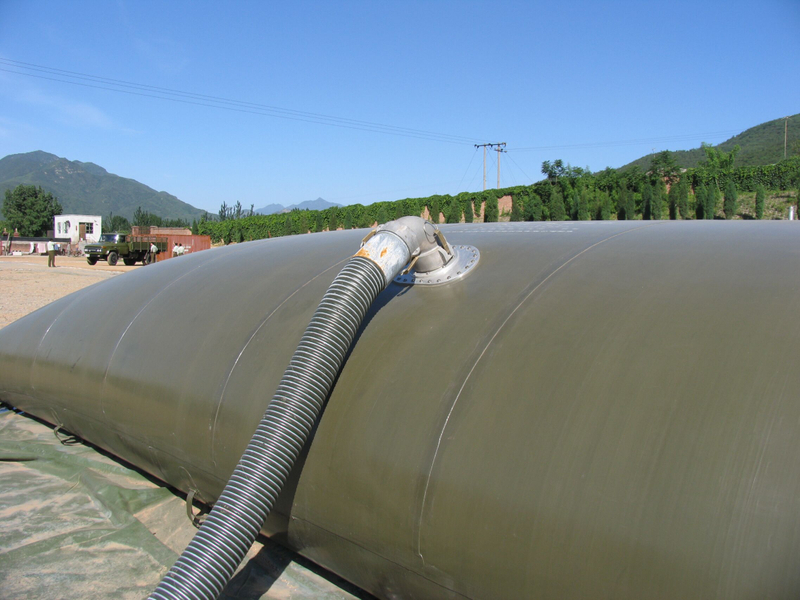

Collapsible fuel bladder description
Collapsible fuel bladder diesel fuel tanks for trucks bladder type fuel cell is not rigid plastic tank and stainless steel bladder.Collapsible fuel bladder fuel tanks are specially designed for temporary storage fuel,oil,water,chemical and other liquids.The standard type is made from highly tensile polyester.Frame work material is terylene fabric coated with special polyurethane on both sides.
Bladder type fuel cell specification
| Capacity | Net Weight | Filled height | Lay-flat size （Length x Width） |
| M3 | Imperial Gal. | Lbs. | Feet | Feet |
|
| 2 | 440 | 55 | 1.6 | 9.0x7.0 |
|
| 3 | 660 | 77 | 1.8 | 10.5x8.2 |
|
| 5 | 1100 | 99 | 2 | 12.5x10.5 |
|
| 10 | 2200 | 154 | 2.6 | 14.4x14.4 |
|
| 15 | 3300 | 198 | 3.3 | 17.7x14.4 |
|
| 20 | 4400 | 243 | 3.6 | 21.3x14.4 |
|
| 25 | 5500 | 276 | 3.6 | 23.0x15.4 |
|
| 50 | 11000 | 485 | 3.6 | 27.8x23.0 |
|
| 76 | 16718 | 728 | 4 | 38.0x23.0 |
|
| 100 | 22000 | 860 | 4 | 36.0x31.2 |
|
| 200 | 44000 | 1388 | 5.2 | 54.5x31.2 |
|
Diesel fuel storage tanks features
1.Expand it like an envelope or one pillow
2.Rolled up form small volume and save space
3.Suitable for flat ground usage
4.Light in weight and stackable
Need a collapsible fuel bladder diesel fuel tanks for trucks bladder type fuel cell? Call us at +86 -29-85518382 to discuss your requirements or request a quote.
