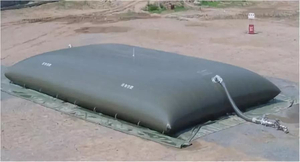

Flexible pillow commercial fuel storage tanks are one kind of flexible fuel container, compared with stainless steel or rigid plastic tank. Most power company store transformer oil,especially use it store transformer oil in wide field when the transformer needs maintenance due to fault, they connect with oil pipe to discharge transformer oil into pillow fuel tank.
Capacity | N.W. | Filled height | Lay-flat size (Length x Width) |
US Gal. | Lbs. | Feet | Feet |
528 | 55 | 1.6 | 9.0x7.0 |
793 | 77 | 1.8 | 10.5x8.2 |
1320 | 99 | 2 | 12.5x10.5 |
2640 | 154 | 2.6 | 14.4x14.4 |
3960 | 198 | 3.3 | 17.7x14.4 |
5280 | 243 | 3.6 | 21.3x14.4 |
6600 | 276 | 3.6 | 23.0x15.4 |
13208 | 485 | 3.6 | 27.8x23.0 |
20076 | 728 | 4 | 38.0x23.0 |
26417 | 860 | 4 | 36.0x31.2 |
52834 | 1388 | 5.2 | 54.5x31.2 |
Product name | flexible pillow commercial fuel storage tanks gasoline holding tank |
Material | highly tensile polyester |
Color | Dark green |
Type | flexible, mobile |
Capacity | 528 to 52834 US Gal. |
Applications | industrial,oil industry applications,agricultural applications,fuel dispensers, vehicle |
Other characteristics | horizontal |
Service | OEM & ODM |
Packing | Carton or wooden carton |
1.High strength of the seams because of the high frequency melt and sealed with the same
polyurethane as the tank body, so the tanks have excellent ability against air leakage and
its very safety for fuel storage,the tank can be 10% over filled of its rated capacity.
2.Suitable for normal use at ambient temperature ranging from -46℃ to +86℃.
3.Good aging resistance ability, which ensures long storage and service life.
4.Provided with cam-lock type fitting.
5.Accessories including hoses,valves, ground cloths,repair kits,many other items can be supplied as needed.
Need one flexible pillow commercial fuel storage tanks gasoline holding tank? Call +86-29-8836-9398 to discuss your demands or request a quote.
