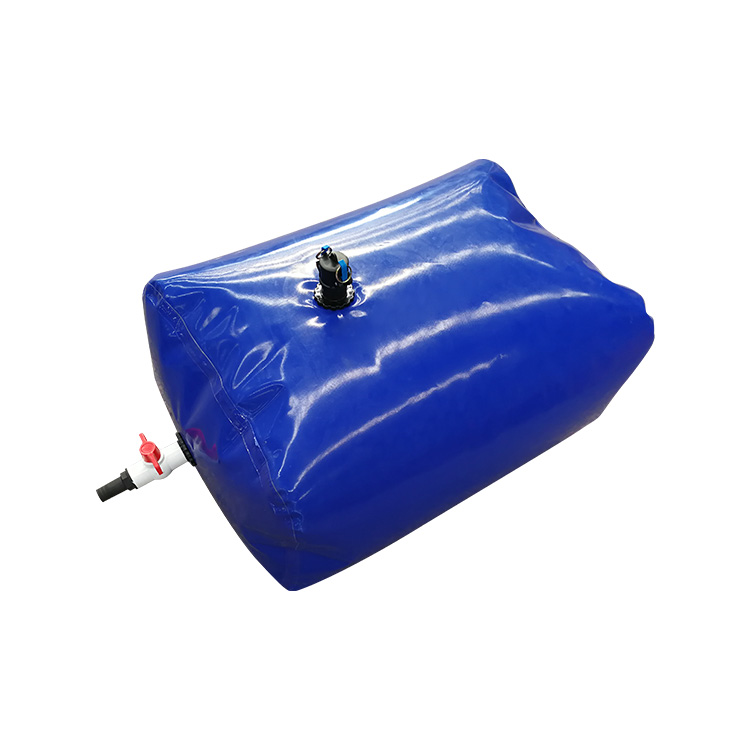

It is very significant that harvesting rainwater to store and use again.Many countries are all do it whether their water resources are abundant or not.As the supplier of flexible rain water storage container tank bladders since 2006,we serve thousands of customer and help them install rainwater collecting system.As a key products that flexible rain water storage container tank bladders connect with the water pipe from the roof,the tank will be filled fully when it is raining.You can make outlet valve is ON and discharge the rainwater to irrigate garden and washing cars.
| Capacity | Tank Layflat Size | Tank Approx.Size Filled | Ground sheet Size |
| 1,000L/264 Gal. | 2.60 x 1.50m | 2.10 x 1.00 x 0.50m | 3.10 x 2.00m |
| 2,000L/528 Gal. | 2.60 x 2.30m | 2.00 x 1.70 x 0.60m | 3.10 x 2.80m |
| 3,000lL/793 Gal. | 3.10 x 2.60m | 2.50 x 2.00 x 0.60m | 3.60 x 3.10m |
| 5,000L/1321 Gal. | 4.50 x 2.60m | 3.80 x 1.90 x 0.70m | 5.00 x 3.10m |
| 10,000 L/2642 Gal. | 5.20 x 3.40m | 4.20 x 2.40 x 1.00m | 5.70 x 3.90m |
| 15,000 L/3963 Gal. | 5.20 x 4.50m | 4.10 x 3.40 x 1.10m | 5.70 x 5.00m |
| 20,000 L/5283 Gal. | 5.40 x 5.20m | 4.20 x 4.00 x 1.20m | 5.90 x 5.70m |
| 30,000 L/7925 Gal. | 7.20 x 5.20m | 5.90 x 3.90 x 1.30m | 7.70 x 5.70m |
| 50,000 L/13209 Gal. | 8.30 x 6.50m | 6.80 x 5.00 x 1.50m | 8.80 x 7.00m |
• Construction water.
• Irrigation water storage
• Drought preparation.
• Weight and load testing.
• Remote fire preparedness.
• Clean out or tank repair storage.
• Disaster relief and humanitarian missions.
Questions? We can help! Call our team at 86-29-88369398 or fill out our quote request form to discuss your requirements.
